1.1 PowerSupply Overview/电源概况

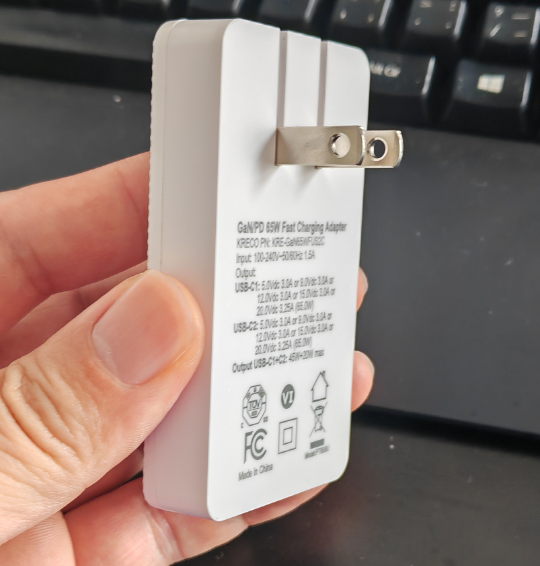

This product is aTotal Power:65W GaN/PD Fast Charger. The product has short-circuit protection, over-current protection and other protections, meeting ROHS requirement.本产品为总功率(见以上英文)W的快充充电器。产品具有短路保护、过电流保护等保护功能，满足RoHS要求。
1.2 Features/特性

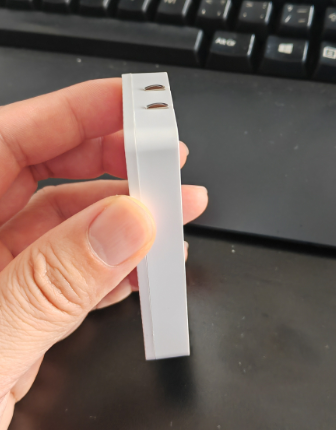

1.2.1 Output ports/输出端口1: USB-C1
support several charging standards including/支持多种充电标准，包括:
QC3.0/QC2.0 (Quick Charge), Apple 2.4A, Huawei-FCP-9V-12V*24W, Samsung-AFC-9, PD3.0, PPS65W, etc.
1.2.2 Output ports/输出端口2: USB-C2
support several charging standards including/支持多种充电标准，包括:
QC3.0/QC2.0 (Quick Charge), Apple 2.4A, Huawei-FCP-9V-12V*24W, Samsung-AFC-9, etc.
2. Input Characteristics/输入特性
2.1 Input Voltage & Frequency/输入电压&频率
The range of input voltage, single phase. /输入电压范围：单相输入。
Items/项目
Minimum /最小
Nominal /额定值
Maximum /最大
Input voltage /输入电压
90Vac
100Vac~240Vac
264Vac
Input frequency /输入频率
47Hz
50/60Hz
63Hz
Input Power Plug/ 输入电源插头：US or JP or CN plug
2.2 Stand-byPower (no-load) Consumption <: 0.21W max. /空载待机功耗小于数。
2.3 Input AC Current Limit under min AC input & full load: 0.9A max.
最小交流输入和满载的情况下，输入电流限制。
2.4 Inrush Current (cold start) @ nominal input: 30A max /冷启动，浪涌电流。
